1. Which are necessary sections in /queue simple to set bandwidth
limitation?
A. target-address, dst-address, max-limit
B.
target-address, max-limit
C. max-limit
D. target-address, dst-address
2. What configuration is added by /ip
Hot-Spot setup command? (Select all that apply)
A.
/ip Hot-Spot user
B.
/ip dhcp-server
C. /queue tree
D. /ip service
E. /ip Hot-Spot walled-garden
3. Firewall NAT rules process only the
first packet of each connection.
A.
False
B. True
4. Which protocol does Ping use?
A. TCP
B. BootP
C.
ICMP
D. ARP
5. What protocol is used for Ping and Trace
route?
A.
UDP - trace route
B. IP
C.
ICMP - ping
D. TCP
E. DHCP
6. The basic unit of a physical network (OSI Layer 1) is the:
A. Byte
B.
Bit
C. Frame
D. Header
7. What kind of users are listed in the
Secrets window of the PPP menu?
A. winbox users
B.
pppoe users
C. wireless users
D.
l2tp users
E.
pptp users
F. Hot-Spot users
8. What menus should be used to allow certain
websites to be accessed from behind a Hot-Spot interface, without client
authentication
A.
ip Hot-Spot walled-garden
B. ip Hot-Spot profile
C. ip Hot-Spot ip-binding
D. ip Hot-Spot walled-garden ip
9. What is necessary for PPPoE client configuration?
A. ip firewall nat masquerade rule
B. Static IP address on PPPoE client interface
C.
Interface (on which PPPoE client is going to work)
10. How long is level 1 (demo) license
valid?
A.
24 hours
B. 1 month
C. Infinite time
D. 1 year
11. Which of the following are layers in the
TCP/IP model?
Application
Session
Transport
Internet
Data Link
Physical
A.
1, 3 and 4
B. 3, 4 and 5
C. 2, 3 and 5
D. 1 and 2
12. Which of the following keystrokes
enables safe mode in console:
A.
Ctrl+x
B. Ctrl+s
C. Ctrl+d
D. Ctrl+c
13. What is a stub network?
A.
A network that has only one entry and exit point.
B. A network with only one entry and no exit point.
C. A network with more than one exit point.
D. A network with more than one exit and entry point.
14. Collisions are possible in fullduplex
Ethernet networks
A. true
B. false
15. Your Company has been assigned a
172.16.25.0/25 network from your ISP. What are the possible options to divide
the network into subnets?
A. two times /24
B. one /23 and one /27
C.
two times /26
D. four times /27
16. What is the correct action for a NAT
rule on a router that should intercept SMTP traffic and send it over to a
specified mail server?
A. passthrough
B. tarpit
C. dst-nat
D.
redirect
17. There are two routes in the routing
table:
0 dst-addr=10.1.1.0/24 gateway=5.5.5.5
1 dst-addr=10.1.1.4/30 gateway=5.6.6.6
Which gateway will be used to get to the
IP address 10.1.1.6?
A. the required route is not in the routing table
B. both - half of the traffic will be routed through
one gateway, half through the other
C. 5.5.5.5
D.
5.6.6.6
18. MAC layer by OSI model is also known as
A. Layer 1
B.
Layer 2
C. Layer 7
D. Layer 6
E. Layer 3
19. How many layers does Open Systems
Interconnection model have?
A. 5
B.
7
C. 6
D. 9
E. 12
20. What is the correct action to be
specified in the NAT rule to hide a private network when communicating to the
outside world?
A. tarpit
B. passthrough
C. allow
D.
masquerade
21. For user in local PPP Secrets/PPP
Profiles database, it is possible to
A. Deny services (like telnet) only for this user or
for one group of users
B. Allow login by PPPoE and PPTP, but deny login by
L2TP
C.
Allow/deny use of more than one login by this user
D.
Set max values for transferred data (Rx/Tx)
E.
Allow only PPPoE login
22. Which is the default port of IP-Winbox?
A.
TCP 8291
B. TCP 80
C. UDP 8291
D. TCP 8192
23. You have a router with configuration
- Public IP :202.168.125.45/24
- Default gateway:202.168.125.1
- DNS server: 248.115.148.136, 248.115.148.137
- Local IP: 192.168.2.1/24
Mark the correct configuration on client
PC to access to the Internet
A. IP:192.168.0.1/24 gateway:192.168.2.1
B. IP:192.168.2.253/24 gateway:202.168.0.1
C. IP:192.168.1.223/24 gateway:248.115.148.136
D. IP:192.168.2.115/24
gateway: 192.168.2.1
E. IP:192.168.2.2/24 gateway:202.168.125.45
24. Select valid MAC-address
A.
00:00:5E:80:EE:B0
B. 192.168.0.0/16
C. AEC8:21F1:AA44:54FF:1111:DDAE:0212:1201
D. G2:60:CF:21:99:H0
25. Where can you monitor (see addresses and
ports) real-time connections which are processed by the router?
A.
Firewall Connection Tracking
B.
Tool Torch
C. Queue Tree
D. Firewall Counters
26. It is possible to create an encrypted
PPPoE tunnel in RouterOS:
A. false
B. true
27. Action = Redirect is applied in
A. Chain=srcnat
B.
Chain=dstnat
C. Chain=forward
28. Which is a default baud-rate of
currently manufactured RouterBOARDs?
A.
115200
B. 11520
C. 38400
D. 9600
29. Is ARP used in the IPv6 protocol?
A.
False
B. True
30. A routing table has following entries:
0 dst-address=10.0.0.0/24
gateway=10.1.5.126
1 dst-address=10.1.5.0/24 gateway=10.1.1.1
2 dst-address=10.1.0.0/24 gateway=25.1.1.1
3 dst-address=10.1.5.0/25 gateway=10.1.1.2
Which gateway will be used for a packet
with destination address 10.1.5.126?
A. 10.1.1.1
B. 10.1.5.126
C. 25.1.1.1
D.
10.1.1.2
31. What is the meaning of letter
"R" on an active session in the menu PPP Active Connections?
A. Running
B. Remote
C.
Radius
32. What is the minimal possible wireless configuration
to create an Access Point?
A.
mode
B. frequency
C. DFS mode
D. band
E. scan-list
F. radio name
G. WDS
H. ssid
33. Choose all valid hosts address range for
subnet 15.242.55.62/27
A. 15.242.55.31-15.242.55.62
B. 15.242.55.32-15.242.55.63
C.
15.242.55.33-15.242.55.62
D. 15.242.55.33-15.242.55.63
34. If 'check-gateway' is enabled for an
ECMP route and one of the gateways is unreachable, then:
A.
The unreachable gateway is not going be used in Round Robin algorithm.
B. ECMP is going to send packets to all gateways even
if one is unreachable.
C. The ECMP route becomes inactive.
35. Action=redirect can be used in NAT chain
src-nat
A. true
B.
false
36. You have 802.11b/g wireless card. What
frequencies are available toyou?
A. 5800MHz
B.
2412MHz
C. 5210MHz
D.
2422MHz
E. 2327MH
37. Which of the protocols below is used by
Netinstall?
A. arp
B. rarp
C. dhcp
D.
bootp
38. Action=redirect allows you to make?
A.
Transparent DNS Cache
B. Foward DNS to another device IP address
C. Enable local service
D.
Transparent HTTP Proxy
39. Which of the following protocols / port
s are used for SNMP. (Simple Network Management Protocol)
A.
UDP 162
B. TCP 25
C. TCP 123
D. TCP 161
E. TCP 162
F.
UDP 161
40. Which is correct masquerade rule for
192.168.0.0/24 network on the router with outgoing interface=ether1
A.
/ip firewall nat add action=masquerade chain=srcnat
B. /ip firewall nat add action=masquerade chain=srcnat
srcaddress=192.168.0.0/24
C. /ip firewall nat add action=masquerade
out-interface=ether1 chain=dstnat
D. /ip firewall nat add action=masquerade chain=srcnat
out-interface=ether1
41. What letters appear next to a route,
which is automatically created by RouterOS when user adds a valid address to an
active interface?
A. I
B. S
C.
C
D.
D
E.
A
42. Can you manually add drivers to RouterOS
in case your PCI Ethernet card is not recognized, and it's a driver issue?
A. Yes
B.
No
43. It is possible to add user-defined
chains in ip firewall mangle
A.
True
B. False
44. PPPoE server only works within one
Ethernet broadcast domain that it is connected to. If there is a router between
server and end-user host, it will not be able to create PPPoE tunnel to that
PPPoE server.
A. True
B.
False
45. How long is an IPv6 address?
A. 128
bits
B. 128 bytes
C. 32 bits
D. 64 bits
46. One host on an internal network is
accessing an external web page through a MikroTik router that is doing source
NAT. Select correct statement about the packets that flow from that web page to
the host?
A. Packets go through the input chain before the
routing decision and after that through output chain
B.
Packets go through the forward chain
C. Packets go through the output chain
D. Packets go through the input chain
47. From which of the following locations
can you obtain Winbox?
A.
Router webpage
B. Files menu in your router
C. Via the console cable
D.
Mikrotik.com
48. Where is a hub specified in the OSI
model?
A. Session layer
B. Application layer
C.
Physical layer
D. Data Link layer
49. A DHCP server is configured on a LAN
interface which is a port on a bridge. The DHCP server does not start. What
could be the reason(s)?
A. There may be multiple IP addresses set on the LAN
interface
B. There might not be an IP address assigned to the
LAN Interface
C.
The DHCP server cannot run on an interface which is also a bridge port
D. The IP address pool could be incorrectly defined
50. Which wireless mode allows you to
connect to any standard AP (not only MikroTik) and to be able to bridge this
wireless interface to an Ethernet?
A.
station
B. bridge
C. station-pseudobridge
D. station-wds
51. Two Host, A and B, are connected to
broadcast LAN. Select all the answer showing pairs of IP address/mask which
would allow IP connections to be established between the two hosts
A: 10.1.2.66/25 and B:10.1.2.109/26
B. A: 10.2.2.1/23 and B: 10.2.0.1/22
C.
A: 10.1.2.192/24 and B: 10.1.2.129/26
D. A: 10.2.1.0/23 and B: 10.2.0.1/22
52. Select valid subnet masks:
A.
255.255.224.0
B. 255.255.192.255
C.
192.0.0.0
D.
255.192.0.0
53. Why is it useful to set a Radio Name on
the radio interfaces?
A. To identify a station in a list of connected
clients
B. To identify a station in the Access List
C.
To identify a station in Neighbor discovery
54. The correct order for PPPOE discovery
stage is
A. Initialization, Session confirmation, Request and
Offer
B. Request, Initialization, Session confirmation and
Offer
C. Request, Offer, Initialization and Session
confirmation
D. Initialization,
Offer, Request and Session confirmation
55. Simple Queue number 0 defines 2M for
upload and download for target IP 10.10.0.33. Simple Queue number 1 defines 4M
for upload and download for target IP 10.10.0.33. Client 10.10.0.33 is be able
to obtain
A. 0M upload/download
B. 6M upload/download
C. 4M upload/download
D.
2M upload/download
56. Router A and B are both running as PPPoE
servers on different broadcast domains of your network. Is it possible to set
Router A to use "/ppp secret" accounts from Router B to authenticate
PPPoE customers?
A. Yes
B.
No
57. What kind of users are listed in the
"/user" menu?
A. pptp users
B. wireless users
C.
router users
D. Hot-Spot users
58. Mikrotik RouterOS DHCP client can
receive following options
A. Byte limit
B.
IP Gateway
C. Rate Limit
D. Uptime Limit
E.
IP Address and Subnet
59. It is possible to create a configuration
where VLAN and PPTP interfaces are bridged together.
A.
FALSE
B. TRUE
60. A client that has successfully connected
to a wireless network is considered to be which of the following? Choose all
that apply:
A.
Authenticated
B. Associated
C. Unassociated
D. Unauthenticated
61. Which of the following is true for
connection tracking
A. Connection
tracking must be enabled to be able to use all firewall features
B. Disable connection tracking for mangle to work
C. Connection tracking must be enabled for NAT'ed
network
D.
Enabling connection tracking reduces CPU usage in RouterOS
62. The hotspot feature can be used only on
ethernet interfaces. You have to use a separate access point if you want to use
this feature with wireless
A. Yes
B. No
63. If ARP=reply-only is configured on an
interface, this interface will
A.
accept all MAC-addresses listed in '/ip arp' as static entries
B. add new MAC addresses in '/ip arp' list
C. add new IP addresses in '/ip arp' list
D. accept IP and MAC address combinations listed in
'/ip arp' list
E. accept all IP addresses listed in '/ip arp' as
static entries
64. When backing up your router by using the 'Export'
command, the following happens:
A.
The Export file can be edited with a standard text editor after its creation
B. Winbox usernames and passwords are backed up
C.
You are requested to give the export file a name
65. If you need to make sure that one
computer in your Hotspot network can access the internet without Hotspot
authentication, which menu allows you to do this?
A. Users
B.
IP bindings
C. Walled-garden
D. Walled-garden IP
66. Which statements are true regarding ICMP
packets?
ICMP guarantees datagram delivery.
ICMP can provide hosts with information
about network problems.
ICMP is encapsulated within IP datagrams.
ICMP is encapsulated within UDP datagrams.
A. 1 only
B.
2 and 3
C. 1 and 4
D. All of the above
67. How many different priorities can be
selected for queues in Mikrotik RouterOS?
A.
8
B. 16
C. 0
D. 1
68. When sending out an ARP request, an IP
host is expecting what kind of address for an answer?
A. IP address
B. VLAN ID
C.
MAC Address
D. 802.11g
69. To connect your MikroTik router to a
wireless access point, you have to:
A.
Use the same Band (5 GHz, 2.4 GHz, ...)
B. Use the same Radio Name
C.
Use the same SSID as on accesspoint
70. Select minimal set of software packages
in RouteOS required to configuring a wireless AP
A. advanced-tools
B.
System
C. routing
D. dhcp
E. Wireless
71. What does this simple queue do (check
the image)?
A. Queue guarantees download data rate of one megabit
per second for host 192.168.1.10
B. Queue guarantees upload data rate of one megabit
per second for host 192.168.1.10
C.
Queue limits host 192.168.1.10 upload data rate to one megabit per second.
D. Queue limits host 192.168.1.10 download data rate
to one megabit per second.
72. You have 10 users plugged into a hub
running 10Mbps half-duplex. There is a server connected to the switch running
10Mbps half-duplex as well. How much bandwidth does each host have to the
server?
A. 2 Mbps
B. 1 Mbps
C.
10 Mbps
D. 100 kbps
73. Which default route will be active?
/ip routeadd disabled=no distance=10
dst-address=0.0.0.0/0 gateway=1.1.1.1
add disabled=no distance=5
dst-address=0.0.0.0/0 gateway=2.2.2.2
A. Route via gateway 1.1.1.1
B. Route via gateway 2.2.2.2
74. There can be more than one PPPoE server
in a single broadcast domain:
A.
True
B. False
75. If you wish to block user access to MSN
messenger, which chain should the firewall rule be placed in?
A. output
B. input
C. process
D.
forward
76. Action=redirect allows you to make
A. Transparent
HTTP Proxy
B.
Transparent DNS Cache
C. Forward DNS to another device IP address
D. Enable Local Service
77. A network ready device is directly
connected to a MikroTik RouterBOARD 750 with a correct U.T.P. RJ45 functioning
cable. The device is configured with an IPv4 address of 192.168.100.70 using a
subnet mask of 255.255.255.252. What will be a valid IPv4 address for the
RouterBOARD 750 for a successful connection to the device?
A. 192.168.100.71/255.255.255.252
B.
192.168.100.69/255.255.255.252
C. 192.168.100.68/255.255.255.252
D. 192.168.100.70/255.255.255.252
78. You need to reboot a RouterBoard after
importing a previously exported rsc file to activate the new configuration.
A.
False
B. True
79. To block communications between wireless
clients connected to the same access point interface, you should set
A. 'max-station-count=1'
B. 'default-authentication=no'
C.
'default-forwarding=no'
D. 'default-authentication=no' and
'default-forwarding=no'
80. Why is it useful to set a Radio Name on
the radio interface?
A. To identify a station in a list of connected
clients
B.
To identify a station in the Access List
C. To identify a station in Neighbor discovery
81. Which type of encryption could be used
to establish a connection with a simple passkey without using a 802.1X
authentication server?
A. WPA PSK/WPA2 PSK
B.
WPA EAP/WPA2 EAP
82. You want to use PCQ and allow 256k
maximum download and upload for each client. Choose correct argument values for
the required queue.
A. kind=pcq pcq-rate=1256000
pcq-classifier=dst-address
B. kind=pcq pcq-rate=5000000
pcq-classifier=dst-address
C. kind=pcq pcq-rate=5000000
pcq-classifier=src-address
D.
kind=pcq pcq-rate=256000 pcq-classifier=src-address
E.
kind=pcq pcq-rate=256000 pcq-classifier=dst-address
83. You want to transfer existing '/ip
firewall filter' configuration from one router to a new system.
Choose the best possible way to do:
A.
Export only '/ip firewall filter'
B. Create backup only of '/ip firewall filter' rules
C. Create backup, edit backup file and restore on
target router
D. Export global configuration and remove everything
apart from '/ip firewall filter'
84. Router A and B are both running as PPPoE
servers on different broadcast domains of your network. It is possible to set
Router A to use "/ppp secret" accounts from Router B to authenticate
PPPoE customers.
A.
false
B. true
85. You want to implement a mechanism that
automates the IP configuration, including IP address, subnet mask, default
gateway, and DNS information. Which protocol will you use to accomplish this?
A. SNMP
B. ARP
C.
DHCP
D. SMTP
86. What does the firewall action
"Redirect" do? Select all true statements.
A. Redirects a packet to a specified port on the
router
B. Redirects a packet to the router
C. Redirects
a packet to a specified port on a host in the network
D.
Redirects a packet to a specified IP
87. You have a DHCP server on your MikroTik
router. The IP addresses 10.1.2.2-10.2.2.20 are distributed in the DHCP
network. Additionally, 3 static IP address are defined for your servers:
10.1.2.31-10.1.2.33.
After a while 20 more IP addresses need to
be distributed in the network. It is possible to distribute the extra IP
address without adding another DHCP Server:
A.
False
B. True
88. Destination NAT (chain dstnat, action
dst-nat) can be used to:
A.
Change destination port
B. Hide your local network from the Internet
C. Direct users from the Internet to a server within
your local network
D. Change source port
89. What protocol does PPP use to identify
the Network layer protocol?
A. LCP
B. HDLC
C.
NCP
D. ISDN
90. Which facts are correct about backup
files?
A. Includes files stored in /files
B. Editable
C.
Includes username and password from /user
D. Includes all router configurations
91. When viewing the routes in Winbox, some
routes will show "DAC" in the first column. These flags mean:
A. Dynamic, Available, Created
B. Dynamic, Active, Console
C. Direct, Available, Connected
D.
Dynamic, Active, Connected
92. For static routing functionality,
additionally to the RouterOS 'system' package, you will also need the following
software package:
A. routing
B.
no extra package required
C. dhcp
D. advanced-tools
93. Is it possible to limit how many clients
are able to connect to an access point?
A.
Yes, but only with access-lists
B. No it's not possible at all
C. Yes
94. Mark all correct answers.
A.
Wireless access-list could allow and deny connect to your AP
B. Default-Forwarding could be enabled for a specific
clients by wireless access-list
C. /ip firewall filter allows to deny authentication
to AP
D. The only way to prevent wireless clients
connections - disable wireless interface
95. Which router command allows you to view
the entire contents of all access lists?
A. show interface
B. show all access-lists
C. show ip interface
D.
show access-lists
96. NStreme works only on 40mhz Channel
width
A. True
B. False

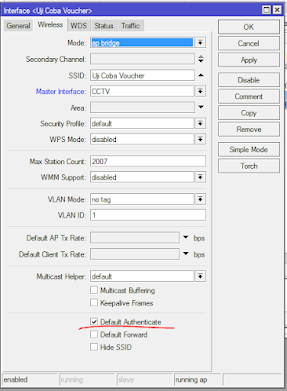

97. Which option in the configuration of a
wireless card must be disabled to cause the router to permit ONLY known clients
listed in the access list to connect?
A. Security Profile
B. Default Forward
C. Default Authenticate
D.
Enable Access List
98. There are two wireless cards (wlan1 and
wlan2) which are bridged together. On wlan1 card there is a setting
"Forwarding=no". Choose the
correct answer(s):
A. Stations on wlan2 will be able to communicate with
stations on wlan1
B. Stations on wlan1 will be able to communicate with
stations on wlan1
C. Stations on wlan1 will be able to communicate with
stations on wlan2
D. Stations on wlan2 will be able to communicate with
stations on wlan2
E.
To prevent communication between wlan1 and wlan2 one cannot use Bridge Filters
99. During a scan, in order to see all the
available wireless frequencies that are supported by the card, the following
option must be selected in the wireless card's "Frequency Mode":
A. manual txpower
B. regulatory domain
C.
superchannel
100. How many wireless clients can connect,
when wireless card is configured to mode=bridge?
A. 2007
B. 100
C.
1
D. 2
101. What is the default TTL (time to live)
on a router that an IP packet can experience before it will be discarded?
A. 1
B. 30
C. 60
D. 64
102. When adding a static route, you must
always ensure that you add both the gateway and the interface.
A. True
B. False
103. To make all DNS request coming from your
network to resolve on your router (regardless of clients configuration), which
action would you specify for the DST-NAT rule?
A. Masquerade
B. Dst-nat
C. You can't use DST-NAT to achieve this
D.
Redirect
104. The first two rules in the forward chain
of the filter table are :/ip firewall filter add chain=forward
connection-state=established action=accept/ip firewall filter add chain=forward
connection-state=invalid action=dropconnection-state=related packets are not
filtered by the rules above
A.
True
B. False
105. /interface wireless access list is used
for
A.
Shows a list of Client's MAC address that are already registered at AP
B. Authenticate Hotspot users
C. Handles a list of Client's MAC Address to
permit/deny connection to AP
D. Contains the security profiles settings
106. On the advanced menu of the wireless
setup there is a parameter called "Area", it works directly with:
A. None of these
B. Connect List
C. Security Profile
D. Access List
107. What is the address range of a Class B
network address in binary?
A. 01xxxxxx
B. 10xxxxxx
C. 0xxxxxxx
D. 110xxxxx
108. In RouterOS queue configurations the
word "total" ussually represents
A. download - upload
B.
upload + download
C. download
D. upload
109. Which class of IP address provides a
maximum of only 254 host addresses per network ID?
A. Class B
B.
Class C
C. Class A
D. Class D
110. What PPP protocol provides dynamic
addressing, authentication, and multilink?
A. NCP
B. HDLC
C.
LCP
D. X.25
111. In case when router login password is
lost, it is necessary to reinstall RouterOS or use hardware reset function.
A.
True
B. False
112. What protocol is used to find the
hardware address of a local device?
A. ICMP
B. IP
C.
ARP
D. RARP
113. Possible actions of ip firewall filter
are:
A.
Tarpit
B. Tarp
C. Bounce
D.
Add-to-address-list
E.
Log
F.
Accept
114. Which of the following is the valid host
range for the subnet on which the IP address 192.168.168.188 255.255.255.192
resides?
A. 192.168.168.128-192
B. 192.168.168.128-190
C.
192.168.168.129-190
D. 192.168.168.129-191
115. Mark the queue types that are available
in RouterOS
A.
RED - Random Early Detect (or Drop)
B. LIFO - Last In First Out
C.
FIFO - First In First Out (for Bytes or for Packets)
D. DRR - Deficit Round Robin
E.
PCQ - Per Connection Queuing
F.
SFQ - Stochastic Fairness Queuing
116. Which software version can be installed
onto the following RouterBoard types?
A. Routeros-x86-x.xx.npk on a RB1100
B. Routeros-mipsbe-x.xx.npk on a RB133
C. Routeros-mipsle-x.xx.npk
on a RB133
D. Routeros-powerpc-x.xx.npk on a RB333
E.
Routeros-mipsbe-x.xx.npk on a RB433
117. Which port does PPTP use by default?
A. UDP 1723
B.
TCP 1723
C. UDP 1721
D. TCP 1721
118. Which firewall chain should you use to
filter clients HTTP traffic going through the router?
A. prerouting
B.
forward
C. output
D. input
119. PPP Secrets are used for
A.
L2TP clients
B. Router users
C.
PPTP clients
D.
PPP clients
E. IPSec clients
F.
PPPoE clients
120. Which of the following allows a router
to respond to an ARP request that is intended for a remote host?
A.
Proxy ARP
B. Inverse ARP (IARP)
C. Reverse ARP (RARP)
D. Gateway DP
121. WPA 2 Pre Shared key (PSK) is enabled on
AP, all your clients have to use the same PSK. Only Virtual AP could be used to
allow clients to connect with a different PSK.
A. True
B.
False
122. Which of the following actions are
available for '/ip firewall mangle' (select all valid actions)
A.
Change MSS
B.
Mark connection
C.
Accept
D.
Jump
E. Drop
F.
Mark packet
123. You need to set up an E1(T1) connection
with PPP configured. Which License Level is needed?
A. Level 4
B.
It cannot be done in RouterOS
C. Level 5
124. An IP address pool can contain address
from more than one subnet
A.
True
B. False
125. Which features are removed when
advanced-tools packages is uninstalled?
A.
Neighbors
B. Ip-scan
C.
Netwatch
D. LCD support
E.
Ping
F. Bandwith-test
126. Rate Flapping can be avoided by
A. Choose larger channels (40 Mhz instead of 20 Mhz)
B.
Reduce supported rates
C. Change ap-bridge to bridge
D. Set basic rates to only one data rate like 24 Mbps
127. Mark possible connection states in the
connection tracking table
A.
Related
B.
Invalid
C. Closed
D.
Established
E. Syn
F.
New
128. Which options should be used when you
want to prevent access from one specific address to your router web interface?
A. Group setting for System users
B.
Firewall Filter Chain Input
C. Firewall Filter Chain Forward
D. WWW service from IP Services
129. Which queue-type is suitable for congested
environment but not good on UDP?
A. PCQ
B. BFIFO
C. PFIFO
D.
RED
E. SCQ
130. How many IP addresses can one find in
the header of an IP packet?
A. 1
B. 3
C.
2
D. 4
131. Using wireless connect-list it's
possible to prioritize connection to one Access Point over another Access Point
by changing the order of the entries.
A. True
B.
False
132. RouterOS log messages are stored on disk
by default
A.
False
B. True
133. Which of the following is the decimal
and hexadecimal equivalents of the binary number 10011101?
A. 155, 0x9B
B.
157, 0x9D
C. 185, 0xB9
D. 159, 0x9F
134. Which of the following are TCP/IP
protocols used at the Application layer of the OSI model?
IP
TCP
Telnet
FTP
TFTP
A. 1, 3 and 5
B. 1 and 3
C. All of the above
D.
3, 4 and 5
135. MikroTik RouterOS commands can be run
once a day by:
A. /system watchdog
B.
/system scheduler
C. /system cron
136. Which of the following is used in
standard 802.11 wireless networks?
A.
CSMA/CA
B. CSMA/CD
C. CDMA
D. FDD
137. Choose correct statements for
MikroTik proxy (MULTI)
A. Controls domains or servers which are allowed to
cache by Proxy
B. To deny access to a specific website, caching
should be enabled
C. Destination NAT rule is required to utilize
transparent proxy facility
D. Can deny access to a specific domains or servers, but not specific web pages
138. What can be used as
’target-address’ in the simple queue? (ONE)
A. server’s address
B. client’s address
C. client’s MAC address
D. address list name
139. A MikoTik PPPoE Server can be used
only within a broadcast domain, that is, users can not run PPPoE protocol with
a server if there is a router between the customer and that PPPoE server.
A. TRUE
B. FALSE
140. What is marked by
connection-state=established matcher? (ONE)
A. Packet begins a new TCP connection
B. Packet does not correspond to any known connection
C. Packet is related to, but not part of an existing connection
D. Packet belongs to an existing connection, for
example a reply packet or a packet which belongs to already replied connection
141. To be able to do NAT the connection tracking does not need to be enabled.
A. TRUE
B. FALSE
142. If a packet comes to a router and starts a new, previously unseen connection, which connection state would be applied to it? (ONE)
A. established
B. unknown
C. new
D. invalid
E. no connection state would be applied to such packet
143. How many usable IP addresses are there in a 20-bit subnet? (ONE)
A. 2047
B. 4094
C. 2048
D. 2046
E. 4096
144. Hotspot ip-binding is used to
allow access to Internet web servers specifying the IP address of the web server
instead of the URL.
A. TRUE
B. FALSE
145. Netinstall can be used to (MULTI)
A. Keep configuration, but reset a lost admin password
B. Install different software version (upgrade or
downgrade)
C. Install package for different hardware architecture
D. Reinstall software without losing license
146. You have a wireless interface with SSID="WAN1"mode="ap-bridge" and a VirtualAP with SSID="VAP1" on the router. Is it possible to use nstreme protocol? (ONE)
A. No, Nstreme can not be used on wireless interface
if a VirtualAP is on it.
B. Yes, but Nstreme can be used only for SSID=VAP1.
C. Yes, but Nstreme can be used only for SSID=WLAN1.
D. Yes, Nstreme can be used for both SSIDs
147. /store allows you to save to external disk (MULTI)
A. web-proxy data
B. system configuration
C. dude data
D. User-Manager data
148. You wish to
secure your RouterOS system. You do not want the RouterOS to be discoverable
using MNDP or CDP locally. You also want to deny management via the MAC
addresses on all interfaces. Select the correct actions to accomplish
this. (MULTI)
A. Remove/Disable the Interfaces
B. Add a Deny All input firewall rule
C. Place a proper input firewall rule to block mac
discovery
D. Place a proper forward firewall rule to block mac
discovery
E. Remove/Disable all discovery interfaces
F. Remove/Disable all interfaces under mac-server
telnet
G. Remove/Disable all interfaces under mac-Server
winbox
149. You need to redirect a browser page from a search of "xxx" in google to another website such as www.mikrotik.com
Choose correct proxy access rule. (ONE)
A. /ip proxy access add dst-host=*.google.* path=*xxx*
action=deny redirect-to=www.mikrotik.com
B. /ip proxy access add path=*xxx* action=allow
redirect-to=www.mikrotik.com
C. /ip proxy access add dst-host=*xxx* action=allow
redirect-to=www.mikrotik.com
D. /ip proxy access add dst-host=*xxx* action=deny
redirect-to=www.mikrotik.com
150. Is it possible to have PPTP Client and PPTP server on one MikroTik router at the same time?
A. TRUE
B. FALSE
151. In which situations can Netinstall NOT be used to install a RouterBOARD? (MULTI)
A. The router does not have an operating system
B. The router is connected only to a secondary
Ethernet port
C. You do not know the password of the router
D. The router is connected only to a wireless network
152. Check the allowed input formats for wireless scan-list. (MULTI)
A. 5500 5700
B. 5500 - 5700
C. 5500/5700
D. 5500,5700
E. 5500-5700
153. Collisions are possible in full-duplex Ethernet networks
A.TRUE
B. FALSE
154. You would like to allow multiple logins with one user name on a HotSpot server. How should this be configured? (MULTI)
A. Set "Shared Users" option at /ip hotspot
B. It's not possible
C. Set "only-one=no' at /ip hotspot
D. Set "Shared Users" option at /ip hotspot
user profile
155. What wireless
modes can be used in a WDS setup? (MULTI)
A. station-wds
B. ap-bridge
C. nstreme-dual-slave
D. bridge
E. station
156. Which rule is used to block SMTP
protocol from Lan interface for clients? (ONE)
A. /ip firewall filter add chain=forward
protocol=tcp dst-port=25 action=drop in-interface=Lan
B. /ip firewall filter add chain=input
protocol=tcp dst-port=25 action=drop in-interface=Lan
C. /ip firewall filter add chain=forward dst-port=25
action=drop in-interface=Lan
D. /ip firewall filter add chain=output
protocol=tcpdst-port=25 action=drop in-interface=Lan
157. The highest queue priority is?
A. 1
B. 16
C. 8
D. 256
158. A client uses a RouterBOARD1000.The
clock is configured in '/system clock'. The clock resets to default after each
reboot.
Select the best solution for the problem.
(MULTI)
A. Configure '/system ntp server' and set a valid and
reachable NTP client address.
B. Configure '/system ntp client' and set a valid and
reachable NTP server address.
C. Write a script in '/system script' to set the clock
D. Open the router and ensure the CMOS battery is fine
159. When backing up
your router by using the 'Export' command, the following happens: (MULTI)
A. You are requested to give the export file a name
B. Winbox usernames and passwords are backed up
C. The Export file can be edited with a standard text
editor after its creation
160. Select which of the following are
'Public IP addresses': (MULTI)
A. 10.110.50.37
B. 172.28.73.21
C. 192.168.0.1
D. 172.168.254.2
E. 11.63.72.21
161. Define a routing
loop (choose the most precise description) (ONE)
A. situation where the TTL of the packet expires
B. situation where the packet is routed through the
same router twice
C. Situation where the packet does not reach it\'s
destination
D. situation where the packet is routed through the
same sequence of routers until the TTL expires
162. What can you do
with Netinstall? (MULTI)
A. Reinstall RouterOS
B. Install Linux
C. Reset password in RouterOS
D. Add configuration to RouterOS
163. The basic unit
of a physical network (OSI Layer 1) is the: (ONE)
A. Byte
B. Header
C. Bit
D. Frame
164. Which of the
following would prevent unknown clients from connecting to your AP? Choose the
BEST answer. (ONE)
A. Uncheck "Default Authenticate" in the
wireless card configuration, and add each known client's MAC address to your access-list
configuration ensuring that you enable "authenticate" in the entry
B. Add each known client's MAC address to your
access-list configuration is the only step needed
C. Configure the radius server under
"/radius"
D. Check the "Do not permit unknown client"
box in the wireless configuration
E. Uncheck "Default Authenticate" in the
wireless card configuration, and add each known client's MAC address to your
connect-list configuration
165. You want to
share the same user and password for different computers. Which menu is used
for configuration? (MULTI)
A. /ip hotspot walled-garden
B. /ip hotspot user profile
C. /ip hotspot profile
D. /ip hotspot ip-binding
166. You can not use
OSPF and RIP routing protocols simultaneously on the RouterOS.
TRUE/FALSE
167. When adding a
user to your local ppp secrets/ppp profiles database, it is possible to (MULTI)
A. Allow/deny use of more than one login by this user
B. Set max values for total transferred bytes (up- and
download)
C. Allow login by pppoe and pptp, but deny login by
l2tp
D. Deny services (like telnet) only for this user or
for one group of users
E. Allow only pppoe login
168. What is true
about Bandwidth Test Tool? (select all that apply) (MULTI)
A. Only work on MikroTik Router OS
B. Can be downloaded on default router webpage
C. Tests throughput between two MikroTik devices
D. Can be used to monitor throughput to a remote
device
169. Using wireless
connect-list it’s possible to prioritize connection to one Access Point over
another Access Point by changing the order of the entries.
TRUE/FALSE
170. Action=redirect
can be used in NAT chain src-nat
TRUE/FALSE
171. Mark all
packages required for PPPoE server on MikroTik RouterOS (MULTI)
A. synchronous
B. radius
C. user-manager
D. ppp
E. system
172. It is impossible
to disable user "admin" at the menu "/user"
TRUE/FALSE
173. It is required
to make a web server on a private LAN visible on the Public Internet. Only the
web server port should be visible to the public. Which of the following
configuration steps must be met. (select all that apply) (MULTI)
A. A route between the NAT Router and the webserver
must exist
B. Connection Tracking must be enabled on NAT router
C. LAN address of the webserver should be routable on
the internet
D. in ip firewall NAT there should be a dst-nat
between the public ip of the router and the private ip of the webserver
E. Public IP address of the webserver must be
installed on the NAT Router
174. A backup file
from a MikroTik router is stored in plain text format
TRUE/FALSE
175. What
configuration is added by /ip hotspot setup command? (select all that apply)
(MULTI)
A. /queue tree
B. /ip hotspot walled-garden
C. /ip hotspot user
D. /ip service
E. /ip dhcp-server
176. /interface wireless access-list
is used for (MULTI)
A. Shows a list of Client's MAC Address that are
already registered at AP
B. Handles a list of Client's MAC Address to
permit/deny connection to AP
C. Contains the security profiles settings
D. Authenticate Hotspot users
177. What action
should be used to inform source that packets reached destination, but was not
accepted ? (ONE)
A. action=accept
B. action=drop
C. action=tarpit
D. action=reject
178. In which order
are the entries in Access List and Connect List processed? (ONE)
A. By Signal Strength Range
B. In sequence order
C. In a random order
D. By interface name
179. You want to skip
HotSpot (authorization, accounting, etc.) for a specific host. What should you
use? (ONE)
A. /ip hotspot walled-garden ip
B. /ip hotspot walled-garden
C. /ip address
D. /ip hotspot ip-binding
180. Two mangle rules defining
different mangle marks for the same traffic type, will make it have both mangle
marks.
TRUE/FALSE
181. Which firewall chain should you
use to filter ICMP packets from the router itself? (ONE)
A. input
B. forward
C. output
D. postrouting
182. When adding a static route, you
must always ensure that you add both the gateway and the interface.
TRUE/FALSE
183. What does this
simple queue do (check the image)? (ONE)
A. Queue limits host 192.168.1.10 download data rate
to one megabit per second.
B. Queue guarantees download data rate of one megabit
per second for host 192.168.1.10
C. Queue guarantees upload data rate of one megabit
per second for host 192.168.1.10
D. Queue limits host 192.168.1.10 upload data rate to
one megabit per second.
184. Router A and B
are both running as PPPoE servers on different broadcast domains of your
network. Is it possible to set Router A to use "/ppp secret" accounts
from Router B to authenticate PPPoE customers ?
TRUE/FALSE
185. Is it possible
for a client to get an IP address but no gateway after a successful DHCP
request?
TRUE/FALSE
186. A network ready
device is directly connected to a MikroTik RouterBOARD 750 with a correct
U.T.P. RJ45 functioning cable. The device is configured with an IPv4 address of
192.168.100.70 using a subnet mask of 255.255.255.252. What will be a valid
IPv4 address for the RouterBOARD 750 for a successful connection to the device?
(MULTI)
A. 192.168.100.68/255.255.255.252
B. 192.168.100.69/255.255.255.252
C. 192.168.100.71/255.255.255.252
D. 192.168.100.70/255.255.255.252
187. The gateway router is configured with
a transparent proxy with the following parameters:
/ip proxy access add
dst-host=www.mikrotik.com action=allow
/ip proxy access add dst-host=www.mt.lv
action=deny redirect-to=forum.mikrotik.com
188. When the user is opening www.mt.lv, what
is shown in the browser? (ONE)
A. www.mt.lv
B. forum.mikrotik.com
C. www.mikrotik.com
189. Simple Queue
number 0 defines 2M for upload and download for target IP 10.10.0.33.
Simple Queue number 1 defines 4M for upload and download for target IP
10.10.0.33. Client 10.10.0.33 is be able to obtain (MULTI)
A. 4M upload/download
B. 6M upload/download
C. 0M upload/download
D. 2M upload/download
190. Hotspot can be
configured on a Virtual Access point interface
TRUE/FALSE
191. Wireless clients
(mode=station) will work properly if bridged to Ethernet
TRUE/FALSE
192. Where should you
upload new MikroTik RouterOS version packages for upgrading router? (ONE)
A. Any directory in /files
B. System Backup menu
C. FTP root directory or files directory of the router
D. System package menu
193. When sending out
an ARP request, an IP host is expecting what kind of address for an answer?
(MULTI)
A. VLAN ID
B. MAC Address
C. IP address
D. 802.11g
194. Is it possible to create a custom
firewall chain and use it in both input and forward chains at the same time?
TRUE/FALSE
195. The following
image shows a RouterOS Wireless Access List configuration.
Wireless interface "Default
Authenticate" is unchecked. What will happen with clients connecting to
this AP? (ONE)
A. No client is able to connect to the Wireless Access
Point.
B. 00:0C:42:61:6C:90 client will connect to wlan1
C. 00:0C:42:31:38:A2 will connect to wlan1 when the
signal strength is greater than -60
D. Client with mac-address 00:0C:42:31:38:A2 will connect
to wlan1
196. HotSpot is required on the interfaces
ether2, ether3, wlan1 (in ap-bridge mode).
These interfaces are bridged in the
bridge1 interface.
Which interface should the HotSpot server
be configured on? (ONE)
A. On wlan1 interface
B. On bridge1 interface
C. On ether3 interface
D. On ether2 interface
197. Mark correct
statements. (MULTI)
A. Export files are not editable
B. Backup files are not editable
C. Backup files are editable
198. Which is the
default port of IP-Winbox? (ONE)
A. TCP 8192
B. TCP 8291
C. TCP 80
D. UDP 8291
199. What kind of
users are listed in the Secrets window of the PPP menu? (MULTI)
A. pptp users
B. winbox users
C. wireless users
D. l2tp users
E. pppoe users
F. hotspot users
200. For static
routing functionality, additionally to the RouterOS system package, you will
also need the following software package: (ONE)
A. routing
B. dhcp
C. none
D. advanced-tools
201. What kind of users are listed in the
"/user" menu?
A. hotspot users
B. wireless users
C. router users
D. pptp users
202. Is action=masquerade allowed in
chain=dstnat?
A. yes
B. no
C. yes, but it works only for incoming connections
D. yes, but only if dst-addr is specified
203. MikroTik RouterOS is sending logs to
an external syslog server. Which protocol and port is
used by RouterOS for sending logs (by
default)?
A. UDP 514
B. UDP 21
C. TCP 110
D. UDP 113
204. When "Cache On Disk" is not checked under the web proxy settings, where does the data get stored?
A. RAM (Memory)
B. System Disk
C. USB Disk
D. It does not get stored
205. Which options are correct ?
A. DST-NAT to define new destination address in our
local network for incoming packets
B. SRC-NAT to prevent local network clients access to
outside
C. SRC-NAT to prevent access from outside to our local
network clients
D. DST-NAT to redirect all packets to router itself
206. RouterOS DHCP server is able to send
any DHCP options (specified in RFCs) to DHCP
clients
TRUE/FALSE
207. Which of the following is NOT a
valid MAC Address?
A. 88:0C:00:99:5F:EF
B. EA:BA:AA:EE:FF:CB
C. 80:GF:AA:67:13:5D
D. 13:16:86:53:89:43
E. 95:B5:DD:EE:78:8A
208. Possible actions of ip firewall filter
are:
A. tarp
B. add-to-list
C. bounce
D. tarpit
E. log
F. accept
209. You have a router with configuration
- Public IP :202.168.125.45/24
- Default gateway:202.168.125.1
- DNS server: 248.115.148.136, 248.115.148.137
- Local IP: 192.168.2.1/24
Mark the correct configuration on client
PC to access to the Internet
A. IP:192.168.2.2/24 gateway:202.168.125.45
B. IP:192.168.2.115/24 gateway: 192.168.2.1
C. IP:192.168.0.1/24 gateway:192.168.2.1
D. IP:192.168.1.223/24 gateway:248.115.148.136
E. IP:192.168.2.253/24 gateway:202.168.0.1
210. What letters appear next to a route,
which is automatically created by RouterOS when user
adds a valid address to an active
interface?
A. I
B. S
C. D
D. A
E. C
211. There is an HTTP server 10.0.0.1 in
your private network. You have made a DST-NAT rule
that sends all HTTP traffic received on
your router's address 80.232.50.100 to this server. If you
make a firewall rule on the router to
disallow address 159.148.20.30 to communicate with the
server, how would you identify this
communication in this rule?
A. src-address=80.232.50.100 dst-address=10.0.0.1
B. src-address=159.148.20.30 dst-address=80.232.50.100
C. src-address=159.148.20.30 dst-address=10.0.0.1
D. src-address=80.232.50.100 dst-address=159.148.20.30
212. Choose all valid hosts address range
for subnet 15.242.55.62/27
A. 15.242.55.32-15.242.55.63
B. 15.242.55.33-15.242.55.63
C. 15.242.55.31-15.242.55.62
D. 15.242.55.33-15.242.55.62
213. Mark the queue types that are
available in RouterOS
A. SFQ – Stochastic Fairness Queuing
B. FIFO - First In First Out (for Bytes or for
Packets)
C. RED – Random Early Detect (or Drop)
D. DRR - Deficit Round Robin
E. PCQ – Per Connection Queuing
F. LIFO - Last In First Out
214. Is it possible to limit how many
clients are able to connect to an access point?
A. Yes
B. No it's not possible at all
C. Yes, but only with access-lists
215. Can you manually add drivers to
RouterOS in case your PCI Ethernet card is not recognized,
and you suspect it is a driver issue?
YES/NO
216. A station can connect to AP if they
both use different country regulation settings, but the
frequency chosen is allowed in both
countries
TRUE/FALSE
217. You want to create an access point for
several laptop (non-RouterOS) clients. Select all
options you can set on the MikroTik
wireless interface:
A. mode=ap-bridge
B. Nstreme to optimize link
C. mode=bridge
D. Security profile for WPA encryption
218. It it possible to use the MikroTik
Nstreme protocol with Windows wireless clients, if they
install a special driver that can be
downloaded from the MikroTik webpage?
TRUE/FALSE
219. Making use of a narrower channel width
such as 10MHz or 5MHz will increase your wireless
link speed.
TRUE/FALSE
220. It is necessary to configure a local
DNS server to be able to give out a DNS setting to clients
via DHCP server.
TRUE/FALSE
221. The default value of 'target-scope'
for a static route is:
A. 30
B. 1
C. 255
D. 10
222. You can control bandwidth of a client connected to AP with the resource / interface wireless
access-list ( assume the client uses
MikroTik RouterOS).
TRUE/FALSE
223. Is it possible that the same IP
address is included in multiple address lists and still be used by
these multiple address lists?
TRUE/FALSE
224. Select valid MAC-address
A. 00:00:5E:80:EE:B0
B. 192.168.0.0/16
C. AEC8:21F1:AA44:54FF:1111:DDAE:0212:1201
D. G2:60:CF:21:99:H0
225. MikroTik proxy features are:
A. SMTP caching
B. DNS name filtering
C. FTP caching
D. POP3 caching
E. HTTP caching
226. What is possible with Netinstall?
(MULTI)
A. MikroTik RouterOS configuration reset
B. MikroTik RouterOS reinstall
C. MikroTik RouterOS password reset with saving
router's configuration
227. Choose the best option to offer
hotspot access to a known wireless client without HotSpot
authentication
A. /ip hotspot ip-binding
B. /ip firewall mangle
C. place Client registered MAC address in access list
D. /ip hotspot walled garden
228. Configuring HotSpot is possible on
MikroTik RouterOS only with a wireless interface.
TRUE/FALSE
229. A routing table has following entries:
0 dst-address=10.0.0.0/24
gateway=10.1.5.126
1 dst-address=10.1.5.0/24 gateway=10.1.1.1
2 dst-address=10.1.0.0/24 gateway=25.1.1.1
3 dst-address=10.1.5.0/25 gateway=10.1.1.2
230. Which gateway will be used for a
packet with destination address 10.1.5.126?
A. 25.1.1.1
B. 10.1.1.1
C. 10.1.5.126
D. 10.1.1.2
231. Action=redirect is applied in
A. chain=srcnat
B. chain=dstnat
C. chain=forward
232. You have 802.11b/g wireless card.
What frequencies are available to you?
A. 5800MHz
B. 2412MHz
C. 5210MHz
D. 2422MHz
E. 2327MHz
233. Mark all correct statements about
/export (rsc file).
A. Exports logs from /log print
B. Exports full configuration of the router
C. Exports only part of the configuration (for example
/ip firewall)
D. Exports scripts from /system script
E. Exports files could not edited
234. What wireless card can we use to
achieve 100 Mbps actual wireless throughput?
A. 802.11 b/g
B. 802.11 a/b/g
C. 802.11 a
D. 802.11 a/n
E. 802.11 a/b/g/n
235. It is possible to add user-defined
chains in ip firewall mangle.
YES/NO
236. Action=redirect allows you to make
A. Transparent DNS Cache
B. Forward DNS to another device IP address
C. Enable Local Service
D. Transparent HTTP Proxy
237. Which is correct masquerade rule for
192.168.0.0/24 network on the router with outgoing interface=ether1?
A. /ip firewall nat add action=masquerade chain=srcnat
B. /ip firewall nat add action=masquerade chain=srcnat
src-address=192.168.0.0/24
C. /ip firewall nat add action=masquerade
out-interface=ether1 chain=dstnat
D. /ip firewall nat add action=masquerade chain=srcnat
out-interface=ether1
238. Mark all features that are compatible
with Nstreme
A. WDS between a device in station-wds mode and a device
in station-wds mode
B. Encryption
C. WDS between a device in ap-bridge mode with a
device in station-wds mode
D. Bridging a device in station mode with a device in
ap-bridge mode
239. Which are necessary sections in
/queue simple to set bandwidth limitation?
A. target-address, max-limit
B. target-address, dst-address, max-limit
C. target-address, dst-address
D. max-limit
240. What protocol is used for Ping and
Trace route?
A. DHCP
B. IP
C. TCP
D. ICMP
E. UDP
241. In MikroTik RouterOS, Layer-3 communication between 2 hosts can be achieved by using an address subnet of:
A. /31
B. /29
C. /32
D. /30
242. Two hosts, A and B, are connected to
a broadcast LAN. Select all the answers showing pairs of IP address/mask which
would allow IP connections to be established between the two hosts.
A. A: 10.1.2.66/25 and B: 10.1.2.109/26
B. A: 10.2.2.1/23 and B: 10.2.0.1/22
C. A: 10.1.2.192/24 and B: 10.1.2.129/26
D. A: 10.2.1.0/23 and B: 10.2.0.1/22
243. Why is it useful to set a Radio Name
on the radio interface?
A. To identify a station in a list of connected
clients
B. To identify a station in the Access List
C. To identify a station in Neighbor discovery
244. MikroTik RouterOS DHCP client can
receive following options
A. Byte limit
B. IP Gateway
C. Rate limit
D. Uptime limit
E. IP Address and Subnet
245. The HotSpot feature can be used only
on ethernet interfaces. You have to use a separate access point if you want to
use this feature with wireless.
TRUE/FALSE
246. If you need to make sure that one
computer in your HotSpot network can access the Internet without HotSpot
authentication, which menu allows you to do this?
A. Users
B. IP bindings
C. Walled-garden
D. Walled-garden IP
247. How many different priorities can be
selected for queues in MikroTik RouterOS?
A. 8
B. 16
C. 0
D. 1
248. Which default route will be active?
/ip route
add disabled=no distance=10
dst-address=0.0.0.0/0 gateway=1.1.1.1
add disabled=no distance=5
dst-address=0.0.0.0/0 gateway=2.2.2.2
A. Route via gateway 1.1.1.1
B. Route via gateway 2.2.2.2
249. How long is level 1 (demo) license
valid?
A. 24 hours
B. Infinite time
C. 1 month
D. 1 year
250. NStreme works only on 40mhz channel width
TRUE/FALSE
251. To make all DNS requests coming from
your network to resolve on your router (regardless of the clients’ configuration),
which action would you specify for the DST-NAT rule?
A. masquerade
B. dst-nat
C. you can’t use DST-NAT to achieve this
D. redirect
252. Which software version can be
installed onto the following RouterBoard types?
A. routeros-x86-x.xx.npk on a RB1100
B. routeros-mipsbe-x.xx.npk on a RB133
C. routeros-mipsle-x.xx.npk on RB133
D. routeros-powerpc-x.xx.npk on a RB333
E. routeros-mipsbe-x.xx.npk on a RB433
253. PPP Secrets are used for
A. L2TP clients
B. Router users
C. PPtP clients
D. IPSec clients
E. PPPoE clients
F. PPP clients
254. WPA 2 Pre-Shared Key (PSK) is enabled on AP, all your
clients have to use the same PSK. Only Virtual AP could be used to allow
clients to connect with a different PSK.
TRUE/FALSE
255. Which of the following actions are
available for ‘/ip firewall mangle’ (select all valid actions)
A. change MSS
B. mark connection
C. accept
D. jump
E. drop
F. mark packet
256. OSFP area ID does not need to be unique within the AS.
TRUE/FALSE
257. Check all of the DHCP Server Options
that are implemented for DHCP-Client and not Custom.
A. WINS Server
B. ntp server
C. DNS Server
D. subnet mask
E. tftp
F. gateway
258. You need to set up an E1(T1)
connection with PPP configured.
Which License level is needed?
A. Level 4
B. It cannot be done in RouterOS
C. Level 5
D. Level 6
259. Mark queue type that uses fairness
principle between sub-queues, allows users to choose classifier for sub-queues,
and apply a limit to each sub-queue
A. SFQ
B. RED
C. PCQ
D. BFIFO
260. An IP address pool can contain addresses from more than
one subnet.
TRUE/FALSE
261. Which features are removed when
advanced-tools package is uninstalled?
A. neighbors
B. ip-scan
C. netwatch
D. LCD support
E. ping
F. bandwidth-test
262. Rate Flapping can be avoided by
A. Choose larger channels (40 MHz instead of 20 MHz)
B. Reduce supported rates
C. Change ap-bridge to bridge
D. Set basic rates to only one data rate like 24 Mbps
263. Mark possible connection states in
the connection tracking table
A. Related
B. Invalid
C. Closed
D. Established
E. Syn
F. New
264. You have a queue structure as
follows:
queue “GP” max-limit=10M
- queue “M” parent=”GP” limit-at=4M
max-limit=6M
- – queue “C1″ parent=”M” limit-at=1M
max-limit=7M priority=4
- – queue “C2″ parent=”M” limit-at=1M
max-limit=4M priority=1
- – queue “C3″ parent=”M” limit-at=3M
max-limit=7M priority=8
- queue “F” parent=”GP” limit-at=5M
max-limit=8M
- – queue “D1″ parent=”F” limit-at=3M
max-limit=4M priority=5
- – queue “D2″ parent=”F” limit-at=2M
max-limit=5M priority=2
If queues “C1″ and “D2″ will not require
any traffic, how the total available traffic is going to be distributed in the
worst case scenario?
A. queue “C2″ will get 3M, “C3″ 2M, “D1″ 4M
B. queue “C2″ will get 2M, “C3″ 5M, “D1″ 3M
C. queue “C2″ will get 4M, “C3″ 2M, “D1″ 4M
D. queue “C2″ will get 2M, “C3″ 3M, “D1″ 5M
E. queue “C2″ will get 3M, “C3″ 3M, “D1″ 4M
265. A MikroTik Router has the following
configuration
/ip address
add address=1.1.1.2/30 interface=ether1
add address=2.2.2.2/30 interface=ether2
add address=192.168.10.1/24
interface=ether3
/ip firewall mangle
add action=mark-connection
chain=prerouting
dst-port=80 new-connection-mark=web_c
passthrough=yes protocol=tcp
add action=mark-routing chain=prerouting
connection-mark=web_c new-routing-mark=web
passthrough=no
/ip firewall nat
add action=masquerade chain=srcnat
out-interface=ether3
/ip route
add gateway=1.1.1.1
add gateway=2.2.2.2 routing-mark=web
What can be said about the Web Access
(port 80) by a customer connected at ether3 interface with IP 192.168.10.2/24,
gateway 192.168.10.1 ?
A. The customer will access the Web using the gateway
2.2.2.2
B. The Customer is unable to access the Web.
C. The Customer will access the Web by ECMP, by using
both gateways 1.1.1.1 and 2.2.2.2
D. The customer will access the Web using the gateway
1.1.1.1
266. Which options should be used when you
want to prevent access from one specific address to your router web interface?
A. Group settings for System users
B. Firewall Filter Chain Input
C. Firewall Filter Chain Forward
D. WWW service from IP Services
267. You need to save visited web-pages to
memory logs from web-proxy. Which is the correct configuration?
A. /system logging add topics=web-proxy,debug
action=memory
B. /system logging add topics=web-proxy,!debug
action=disk
C. /system logging add topics=web-proxy,!debug
action=remote
D. /system logging add topics=web-proxy,!debug
action=memory
268. By default info, error and warning messages are logged
into memory of your RouterOS device. You can add logging of visited web-pages
and other message topics
TRUE/FALSE
269. Which options are necessary to use
the HotSpot Universal Client feature?
A. arp=enabled on the HotSpot interface
B. /ip dhcp-server configuration
C. address-pool configuration in /ip hotspot and /ip
hotspot user profile
D. /ip firewall mangle rules
270. What is the correct action to be
specified in the NAT rule to hide a private network when communicating to the
outside world?
A. tarpit
B. masquerade
C. passthrough
D. allow
271. What is term for the hardware coded
address found on an interface?
A. MAC Address
B. Interface Address
C. FQDN Address
D. IP Address
272. To assign specific traffic to the
route – traffic must be identified by routing mark. Each packet can have only
one routing mark.
TRUE/FALSE
273. In Ip Firewall NAT, you can Classify
Traffic in SRC Nat Chain based on " in-interface".
TRUE/FALSE
274. Which option in the configuration of
a wireless card must be disabled to cause the router to permit ONLY known
clients listed in the access list to connect?
A. Default Forward
B. Enable Access List
C. Default Authenticate
D. Security Profile
275. Which of the following Routes
statuses are possible?
A. D = Drop
B. C = Connected
C. S = Static
D. A = Active
276. How many DHCP servers could you run
on one interface?
A. 255
B. 1024
C. 4
D. 1
277. What is the default protocol/port of
(secure) winbox?
A. TCP/8080
B. TCP/22
C. UDP/5678
D. TCP/8291
278. Router has Wireless and Ethernet
client interfaces, all client interfaces are bridged.
To create a DHCP service for all clients
you must configure DHCP server on
A. only on bridge interface
B. every bridge port
C. DHCP service is not possible in this setup
D. Ethernet and wireless interfaces
279. What does the firewall action
"Redirect" do?
A. Redirects a packet to a specified port on a host in
the network
B. Redirects a packet to a specified IP
C. Redirects a packet to the router
D. Redirects a packet to a specified port on the
router
280. Which wireless mode allows you to
connect to any standard AP (not only MikroTik) and to be able to bridge this wireless
interface to an Ethernet?
A. station
B. bridge
C. station-pseudobridge
D. station-wds
281. How many layers does Open Systems
Interconnection model have?
A. 9
B. 6
C. 5
D. 7
E. 12
282. Which configuration menu should you
use to change router's Winbox default port?
A. /ip service
B. /ip firewall service-ports
C. /ip firewall filter
D. /system resource
283. On the advanced menu of the wireless
setup there is a parameter called “Area”, it works directly with:
A. Connect List
B. Access List
C. None of these
D. Security Profile
284. What menus should be used to allow
certain websites to be accessed from behind a hotspot interface, without client
authentication
A. ip hotspot ip-binding
B. ip hotspot profile
C. ip hotspot walled-garden
D. ip hotspot walled-garden ip
285. Which of the following is true for
connection tracking
A. Enabling connection tracking reduces CPU usage in
RouterOS
B. Connection tracking must be enabled for firewall to
be effective
C. Connection tracking must be enable for NAT’ed
network
D. Disable connection tracking for mangle to work
286. Which of these are possible solutions
to bridge two networks over a wireless link:
A. Both devices in AP mode and enable WDS mode
B. One device in AP mode, another one in
station-pseudobridge-clone
C. One device in AP mode, another one in
station-pseudobridge
D. One device in AP mode, another one in station
287. You have a 802.11b/g wireless card.
Which frequencies can be set?
A. 5210MHz
B. 2327MHz
C. 2422MHz
D. 2412MHz
E. 5800MHz
288. Action=redirect applies to
A. Route rules
B. DST-NAT rules
C. Firewall Filter rules
D. SRC-NAT rules
289. You need to reboot a RouterBoard
after importing a previously exported rsc file to activate the new
configuration.
TRUE/FALSE
290. If ARP=reply-only is configured on an
interface, what will this interface do (MULTI)
A. Add new IP addresses in /ip arp list
B. Accept all IP/MAC combinations listed in /ip arp as
static entries
C. Add new MAC addresses in /ip arp list
D. Accept all IP addresses listed in /ip arp as static
entries
E. Accept all MAC-addresses listed in /ip arp as
static entries
291. We have two radio cards in a
point-to-point link with settings:
Card Nr 1.: mode=ap-bridge ssid=”office”
frequency=2447 band=2.4ghz-b/g
default-authentication=yes default-forwarding=yes security-profile=wpa
Card Nr 2.: mode=station ssid=”office”
frequency=2412 band=2.4ghz-b/g
default-authentication=yes default-forwarding=yes security-profile=wpa2
Is Card Nr2. able to connect to Card Nr
1.?
A. Yes, if Nstreme is enabled or disabled on both
B. Yes, when security profile settings are compatible
with each other and Nstreme is enabled or disabled on both
C. No, because of the different frequencies
D. No, because of the different security profiles
292. Consider the following network
diagram. In R1, you have the following configuration:
/ip route
add dst-address=192.168.1.0/24
gateway=192.168.99.2
/ip firewall nat
add chain=srcnat out-interface=Ether1
action=masquerade
On R2, if you wish to prevent all access
to a server located at 192.168.1.10 from LAN1 devices, which of the following
rules would be needed?
A. /ip firewall filter add chain=forward
src-address=192.168.99.1 dst-address=192.168.1.10 action=drop
B. /ip firewall filter add chain=input
src-address=192.168.99.1 dst-address=192.168.1.10 action=drop
C. /ip firewall nat add chain=dstnat
src-address=192.168.99.1 dst-address=192.168.1.10 action=drop
D. /ip firewall filter add chain=forward
src-address=192.168.0.0/24 dst-address=192.168.1.10 action=drop
293. Select which of the following are
‘Public IP addresses’:
A. 10.110.50.37
B. 11.63.72.21
C. 172.28.73.21
D. 192.168.0.1
E. 172.168.254.2
294. What is the maximum number of ARP
entries on a MikroTik RouterOS device ?
A. Unlimited
B. 2048
C. 8192
D. 10240
295. Mark all correct answers: destination
NAT will take place (MULTI)
A. before ip firewall filter, chain forward
B. after routing decision
C. before routing decision
D. after ip firewall filter, chain forward
296. Mark all correct answers
A. Default-Forwarding could be enabled for a specific
clients by wireless access-list
B. The only way to prevent wireless clients
connections - disable wireless interface
C. Wireless access-list could allow and deny access to
your AP
D. /ip firewall filter allows to deny authentication
to AP
297. To use masquerade, you need to
specify (ONE)
A. Action=accept, out-interface, chain=src-nat
B. Action=masquerade, in-interface, chain=src-nat
C. Action=masquerade, out-interface, chain=src-nat
D. Action=masquerade, out-interface, chain=dst-nat
298. How many wireless clients can
connect, when wireless card is configured to mode=bridge ? (ONE)
A. 2
B. 1
C. 2007
D. 100
299. Which software version can be
installed on to the following RouterBoard types ? (MULTI)
A. Routeros-mipsbe-x.xx.npk on a RB433
B. Routeros-x86-x.xx.npk on a RB1100
C. Routeros-mipsle-x.xx.npk on RB133
D. Routeros-powerpc-x.xx.npk on a RB333
E. Routeros-mipsbe-x.xx.npk on a RB133
300. Which firewall chain you should use
filter SSH access to the router itself ? (ONE)
A. Output
B. Input
C. Prerouting
D. Forward
301. What does the firewall action “log”
do ? (ONE)
A. It logs the packet
B. It blocks and logs the packet
C. It adds a prefix to the packet and passes it
through
D. It logs and blocks the packet
302. You have a wireless interface with
SSID=”WAN1” mode=”ap-bridge” and a VirtualAP with SSID=”WAP1” on the router. Is
it possible to use nstreme protocol ? (ONE)
A. Yes, but Nstreme can be used only for SSID=VAP1
B. Yes, but Nstreme can be used only for SSID=WLAN1
C. No, Nstreme can not be used on wireless interface
if a VirtualAP is on it
D. Yes, but Nstreme will be used for all SSID assigned
for that physical interface
303. Router OS can set vlan-id value from
– to : (ONE)
A. 1 – 4096
B. 1 – 2049
C. 1 – 2048
D. 1 – 4095
304. HotSpot server is installed on the
router. All IP-phones are required to have access to outside networks without
any HotSpot authentication. Select the configuration options you can use to
achieve this setup (MULTI)
A. /ip hotspot walled-garden ip
B. /ip hotspot ip-binding
C. /ip hotspot service-ports
305. Collisions are possible in
full-duplex Ethernet networks
(TRUE/FALSE)
306. You have to connect to a RouterBoard
without any previous configuration. Select all possibilities to connect and do
some basic configuration (MULTI)
A. Telnet
B. Attach Monitor/Keyboard
C. Mac-Winbox
D. Serial Connection
307. You have a DHCP server on your
MikroTik router. The IP addres 10.1.2.2 – 10.2.2.20 are distributed in the DHCP
network. Additionally, 3 static IP address are defined for your servers :
10.1.2.31 – 10.1.2.33. After a while 20 more IP addresses need to be
distributed in the network. Is it possible to distribute the extra IP address
without adding another DHCP server ?
(TRUE/FALSE)
308. What protocol does ping use ? (ONE)
A. UDP
B. ARP
C. TCP
D. ICMP
309. In RouterOS queue configuration
the word “total” usually reports (ONE)
A. Upload
B. Download
C. Download – Upload
D. Upload + Download
310. Firewall NAT rules process only the
first packet of each connection
(TRUE/FALSE)
311. Router firewall rules are:
/ip firewall filter add chain=forward
action=jump jump-target=custom
/ip firewall filter add chain=custom
action=passthrough
/ip firewall filter add chain=forward
action=log
When traffic reaches the end of the
‘chain=custom’. What will happen next?
A. Traffic will be logged in chain=forward
B. Traffic will be dropped in chain=custom
C. Traffic will be accepted in chain=custom
312. Connection marks are stored in the
connection tracking table.
(TRUE/FALSE)
313. Nstreme Dual can be used for (MULTI)
A. different band usage on receive and transmit
B. full-duplex wireless link
C. one wireless card with two antennas
D. wireless link redundancy
314. To block access to web proxies
running on TCP port 8080, you have to create a firewall rule and specify: (ONE)
A. “chain”,”action”,”port”
B. “chain”,”action”,”protocol”,”port”
C. “chain”,”action”,”protocol”,”limit”
D. “chain”,”action”,”protocol”
315. Which of the following is true for
mangle facility in RouterOS? (MULTI)
A. Mark packet can be used by other router facilities
like routing and bandwidth management
B. The mangle mark can be transmitted across the
network, and used by other routers
C. Mangle facility can be used to modify some fields
in the IP header and TTL fields
D. Mangle facility is used to mark IP Packets with
special marks for future processing
316. You are about to configure DNS Chache
and make a static DNS rule, Your router should resolve any domain name. Which
are the minimum settings you will need? (MULTI)
A. Add a new static DNS entry
B. Enable “Allow Remote Requests”
C. Configure Primary DNS server
D. Set cache size to 4096
E. Configure both Primary and Secondary DNS servers
317. The total-max-limit under Simple
Queues will limit the combined upload and download of the target-address of
your simple queue.
(TRUE/FALSE)
318. How many usable IP address are there
in a 23-bit (255.255.254.0) subnet? (ONE)
A. 256
B. 508
C. 512
D. 510
319. What is the meaning of letter
“R” on an active session in the menu PPP active Connections? (ONE)
A. Running
B. Radius
C. Remote
320. Which is a default baud-rate of
curently manufactured RouterBOARDs? (ONE)
A. 115200
B. 38400
C. 9600
D. 11520
321. To use your RouterOS System as a DNS
cache for a local network, you have to: (MULTI)
A. Allow forwarding of DNS traffic
B. Enable “Allow Remote Requests” at DNS settings
C. Enable DHCP package
D. Configure DNS-servers at RouterOS DNS settings
322. Which route will be used to reach
host 192.168.1.55? (ONE)
/ip route
add disable=no distance=1
dst-address=192.168.1.0/24 gateway=1.1.1.1
add disable=no distance=1
dst-address=192.168.1.0/25 gateway=2.2.2.2
add disable=no distance=1
dst-address=192.168.1.0/16 gateway=3.3.3.3
A. Route via gateway 3.3.3.3
B. Route via gateway 2.2.2.2
C. Route via gateway 1.1.1.1
323. Which of the following IP addresses
are publicly routable? (MULTI)
A. 127.34.255.3
B. 172.16.13.23
C. 11.3.10.4
D. 192.158.1.4
324. It is necessary to have a Level 4
RouterOS License to create a wireless link between two RouterOS devices.
(TRUE/FALSE)
325. When clicking the ‘Backup’ button in
the Files widow, the following happens (select all that apply): (MULTI)
A. You are requested to give the backup file a name
B. Backup file is saved to the computer desktop
C. Backup file is created with the data and time of its
creation
D. Backup file will contain Winbox usernames and
passwords
326. Connection tracking can be turned off
on your masquerading internet gateway to improve network performance.
(TRUE/FALSE)
327. To limit wireless access for your
HotSpot users (MULTI)
A. Create MAC Address restriction in the Wireless
Access List
B. Create IP Address restriction in the Wireless
Access List
C. Create MAC Address restriction on HotSpot user
login
D. Create MAC Address restriction on PPP user login
328. Which firewall chain would be used to
block a client’s MSN traffic on a router? (ONE)
A. forward
B. input
C. output
D. static
329. DST-NAT can process traffic sent from
and through the router.
(TRUE/FALSE)
330. A MikroTik PPPoE Server can be used
only within a broadcast domain, that is, user can not run PPPoE protocol with a
server if there is a router between the customer and that PPPoE server.
(TRUE/FALSE)
331. In order to use dynamic keys in your
security profile for an AP, you MUST set up the dhcp server to provide the
dynamic keys.
(TRUE/FALSE)
332. When creating Nstreme Dual links in
the Wireless Interface menu you must set at least the following parameters:
(MULTI)
A. SSID
B. Enable Nstreme
C. Band
D. Frequency
E. None of the above
334. Which facility should be used, to
ensure that clients with radio signal strength poorer than -90dBm can’t connect
to interface wlan 1 on a MikroTik AP? Choose one answer
A. /interface wireless registration-table remove
numbers=-9
B. /interface wireless set wlan1 basic-rates-a/g
C. /interface wireless access-list
D. /interface wireless security-profiles add
static-transmit-key
335. Which computers would be able to
communicate directly (without any involved) (MULTI)
A. 10.5.5.1/24 and 10.5.5.100/25
B. 192.168.0.5/26 and 192.168.0.100
C. 192.168.1715/29 and 192.168.17.20/28
D. 10.10.0.17/22 and 10.10.1.30/23
336. /ip route configuration on router,
/ip route add gateway=192.168.0.1
/ip route add dst-address=192.168.1.0/24
gateway=192.168.0.2
/ip route add dst-address=192.168.2.0/24
gateway=192.168.0.3
/ip route add dst-address=192.168.3.0/26
gateway=192.168.0.4
Router needs to send packets to
192.168.3.240. Which gateway will be used? (ONE)
A. 192.168.0.3
B. 192.168.0.2
C. 192.168.0.4
D. 192.168.0.1
337. What is the minimum configuration a
network administrator needs to do on a MikroTik router to enable OSPF? (ONE)
A. Add an interface to OSPF interface configuration
B. Add a network to OSPF network configuration
C. Both interface and network must be added to OSPF
configuration
D. Nothing; OSPF instance can run with no
configuration
338. Destination NAT (chain dstnat, action
dst-nat) can be used to: (MULTI)
A. Change source port
B. Change destination port
C. Hide your local network from the Internet
D. Direct user from the Internet to a server within
your local network
339. MikroTik RouterOS commands can be run
once a day by: (ONE)
A. /system cron
B. /system scheduler
C. /system watchdog
340. You want to limit bandwith for your
HotSpot users. HotSpot can create dynamic queues on user login to do the speed
limitation.
(TRUE/FALSE)
341. Which of the following protocols are
proprietary to MikroTik (MULTI)
A. Nstreme Dual
B. WMM
C. Nv2
D. Nstreme
E. WiMax
342. What is the correct action for a NAT
rule on a router that should intercept SMTP traffic and send it over to a
specified mail server? (ONE)
A. redirect
B. tarpit
C. dst-nat
D. passthrough
343. If ARP=reply-only is enabled on one
router interface, router can add dynamic ARP entries for the particular
interface.
(TRUE/FALSE)
344. DNS configuration of the router,
/ip dns static add address=192.168.0.1
name=www.test.com
Computer DNS server address is router, You
are sending ping to www.test.com from the computer. Which is the resolved
address? (ONE)
A. www.test.com is resolved as 204.12.0.60
B. www.test.com is resolved as 192.168.0.1
C. it is not possible to resolve www.test.com
345. DHCP server is configured on a
router’s ether1 interface. IP address 192.168.0.100/24 is assigned to the
interface. Possible IP Pools, that can be used by this DHCP server, are:
(MULTI)
A. 192.168.0.1-192.168.0.99,
192.168.0.101-192.168.0.254
B. 192.168.0.1-192.168.0.254
C. 192.168.0.1-192.168.0.14
D.192.168.0.1-192.168.0.255
346. Mark all features that can be used to
assign bandwidth limitation for a group users? (MULTI)
A. AP-limit in Acess Points
B. Address-list
C. Queue Tree
D. Mangle
E. NAT
347. In a wireless network it is decided
to comply with 802.11a protocol standard. To enable turbo mode, which is the
correct configuration? (ONE)
A. 12th channel, 40mhz wide
B. 5th channel, 5mhz wide
C. 6th channel, 40mhz wide
D. 5th channel, 10mhz wide
348. Mark all the configurations where
RouterOS is utilizing the DNS client feature (MULTI)
A. Layer-7 packet filter configuration
B. Hotspot configuration
C. Web-proxy configuration
D. PPP configuration
349. Connection state in MikroTik RouterOS
is the same thing as TCP state elsewhere?
(TRUE/FALSE)
350. Select all the RouterOS software
packages required for configuring a wireless AP (MULTI)
A. advance-tools
B. dhcp
C. system
D. routing
E. wireless
351. A PC with IP 192.168.1.2 can access
internet, and static ARP has been set for that IP address on gateway. When the
PC Ethernet card failed, the user change it with a new card and set the same IP
for it.
What else should be done? (MULTI)
A. Nothing-it will work as before
B. Another IP has to be added for internet access
C. Old static ARP entry on gateway has to be udated
for the new card
D. MAC-address of the new card has to be changed to
MAC address of old card
352. You need to allow HTTP access to
www.mikrotik.com for all HotSpot users without authorization. What should you
use? (ONE)
A. /ip hotspot walled-garden ip
B. /ip hotspot ip-binding
C. /ip hotspot user
D. /ip hotspot walled-garden
353. While troubleshooting a network from
inside the network, you discover that you can ping the gateway reliably, but
you cannot browse the Internet. Skype, however, works flawlessly. What is the
most likely issue?
A. The computer did not get an IP address
B. DNS is not available
C. Masquerading rule is not applied
D. Network card and/or cable is not working
354. Which RouterOS packages should be
installed on router for SSH server support?
A. advanced-tools
B. system
C. ssh
D. security
355. Where are HotSpot authorized clients shown?
A. /ip hotspot user
B. /ip hotspot host
C. /ip hotspot
D. /ip hotspot active
356. Select valid subnet masks:
A. 255.255.224.0
B. 255.192.0.0
C. 192.0.0.0
D. 255.255.192.255
357. /ip firewall nat
add chain=dstnat in-interface=ether1
protocol=tcp dst-port=3389 action=dst-nat to-address=192.168.1.2 to-ports=81
The command shown above:
A. Forwards any TCP traffic incoming through ether1
port 81 to the port 3389 of the internal host 192.168.1.2
B. Forwards all TCP traffic from 192.168.1.2 to port
81 of the interface ether1
C. Forwards any TCP traffic incoming through ether1
port 3389 to the port 81 of the internal host 192.168.1.2
D. Adds IP address 192.168.1.2 to the interface ether1
358. You want to transfer existing '/ip
firewall filter' configuration from one router to a new system. Choose the best
possible way to do:
A. Create backup, edit backup file and restore on
target router
B. Export global configuration and remove everything
apart from '/ip firewall filter'
C. Export only '/ip firewall filter'
D. Create backup only of '/ip firewall filter' rules
359. What could be monitored by Torch?
A. Src. Address
B. None of the above is correct
C. Protocol
D. Dst. Address
E. Dst. Port
F. Vlan ID
